ECOSYS PA4000wx/PA4000x/PA3500wx/PA3500x
Main Specifications

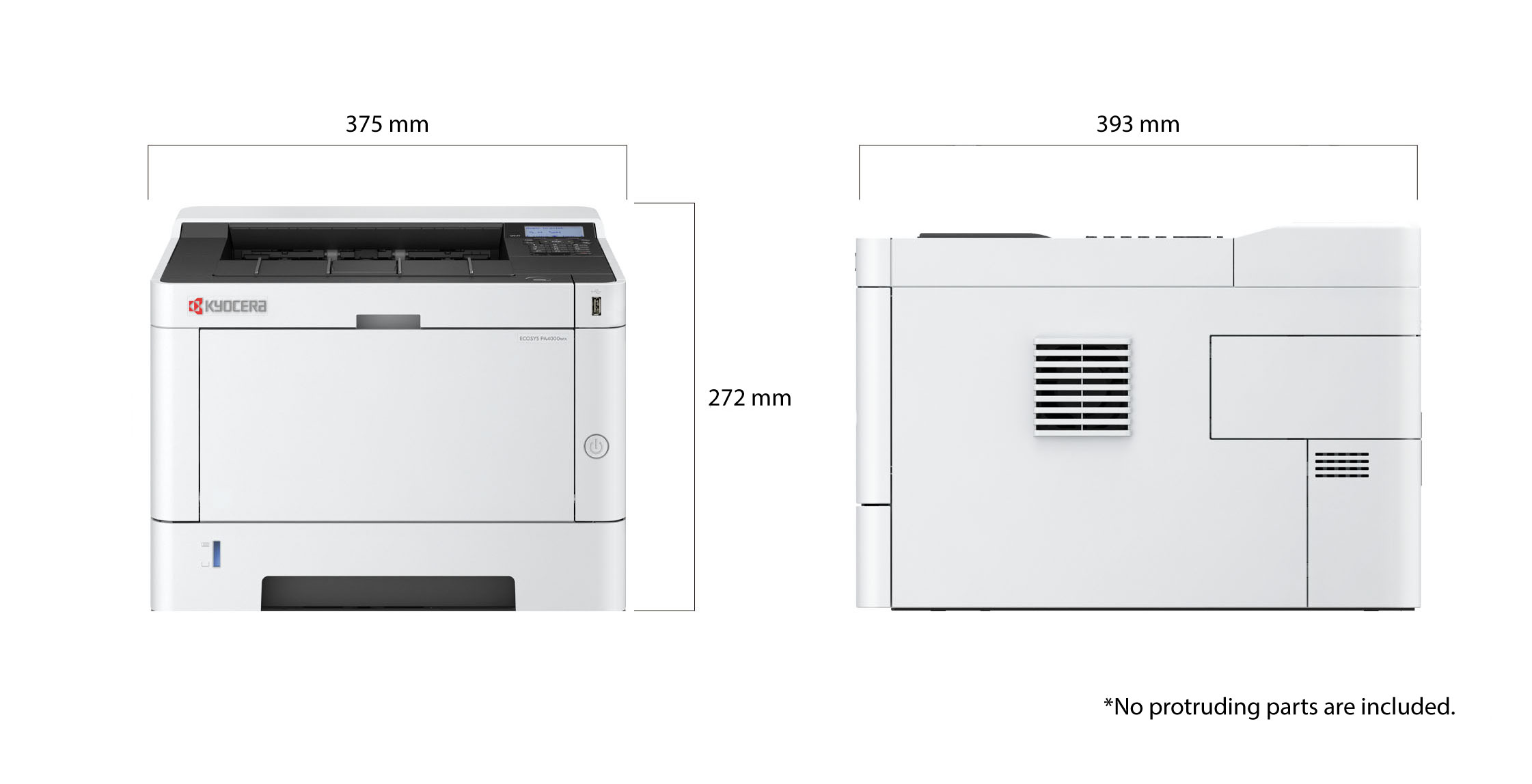

Dimensional drawing
（Main Body）
Main Specifications
| Model | ECOSYS PA3500x | ECOSYS PA3500wx | ECOSYS PA4000x | ECOSYS PA4000wx | |
|---|---|---|---|---|---|
| Type | Desktop | ||||
| Processing Method | Laser exposure dry electrostatic transcription | ||||
| Print Speed (A4) (Mono) | 35 ppm | 40 ppm | |||
| First Print Time | 6.4 seconds or less | ||||
| Warm Up Time | 15 seconds | ||||
| Resolution | 300 x 300 dpi, 600 x 600 dpi, Fast1200, Fine1200 | ||||
| Duplex Printing | Paper size: A5R - A4/Legal; Paper weight: 60 - 163 g/m2 | ||||
| Control Panel | 5 lines LCD (128(W) x 64(H) Dot display) | ||||
|
Power Consumption (Standard configuration) |
Copy/Print Mode | 481.3W | 555.9 W | ||
| Stand-by Mode | 6.0 W | ||||
| Energy Saver | 0.3 W | ||||
| Noise | Copy/Print Mode | 52dB(A); Quiet Mode: 48dB(A) | |||
| Stand-by Mode | 29dB(A) | ||||
| Dimension (W x D x H) (Main Unit) | 375mm x 393mm x 272mm | ||||
| Weight (Main Unit) | Approx. 14.0kg *excluding the toner container | ||||
Controller
| Model | ECOSYS PA3500x | ECOSYS PA3500wx | ECOSYS PA4000x | ECOSYS PA4000wx |
|---|---|---|---|---|
| CPU | ARM Cortex A53 single 1.0GHz | |||
| Memory | Standard 512MB (Max. 512MB) | |||
| Interface | USB 2.0 High Speedx1; Ethernet 10BASE-T/100BASE-TX/1,000BASE-T; USB Host Interface (USB Host)x1; 802.11 b/g/n/ac/ Wireless LAN/WiFi Direct (ECOSYS PA4000wx only) |
|||
| PDL/Emulations | PCL6 (PCL5e, PCL-XL), KPDL3 (Postscript 3 compatible), PRESCRIBE, Line Printer, IBM Proprinter, Epson LQ-850, PDF Direct Print |
|||
| Network Printing | TCP/IP, FTP, LPR, Port9100, NetBEUI, Apple Bonjour | |||
| E-mail printing | Data printing of E-mail received data Data format : PDF, PS, Text, TIFF, JPEG, XPS, OpenXPS |
|||
| Secure printing | IPP over TLS | |||
| Mobile Printing | AirPrint, Mopria, KYOCERA Mobile Print, KYOCERA MyPanel | |||
Paper Handling
| Model | ECOSYS PA3500x | ECOSYS PA3500wx | ECOSYS PA4000x | ECOSYS PA4000wx | |
|---|---|---|---|---|---|
| Paper Capacity | Standard | 250 sheets (Cassette) + 100 sheets (MPT) | |||
| Maximum | 850 sheets (Main Unit + 250 sheets PF-1100 x2 + MPT) | ||||
| Paper Size | Cassette | Min. A6R - Max. A4 (Legal) | |||
| Option | Min. A6R - Max. A4 (Legal) | ||||
| MPT | Min. 70mm x 148mm - Max. A4 (Legal) | ||||
| Paper Weight | Cassette | 60 - 163 g/m2 | |||
| Option | 60 - 163 g/m2 | ||||
| MPT | 60 - 220 g/m2 | ||||
| Output Capacity | Max. 250 sheets face-down | ||||
