TASKalfa Pro 15000c
Main Specifications

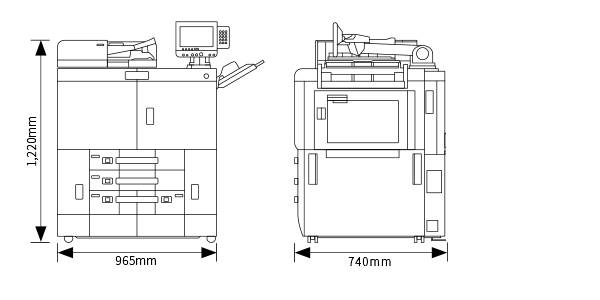

Dimensional drawing
Dimensions and Weight
Main body

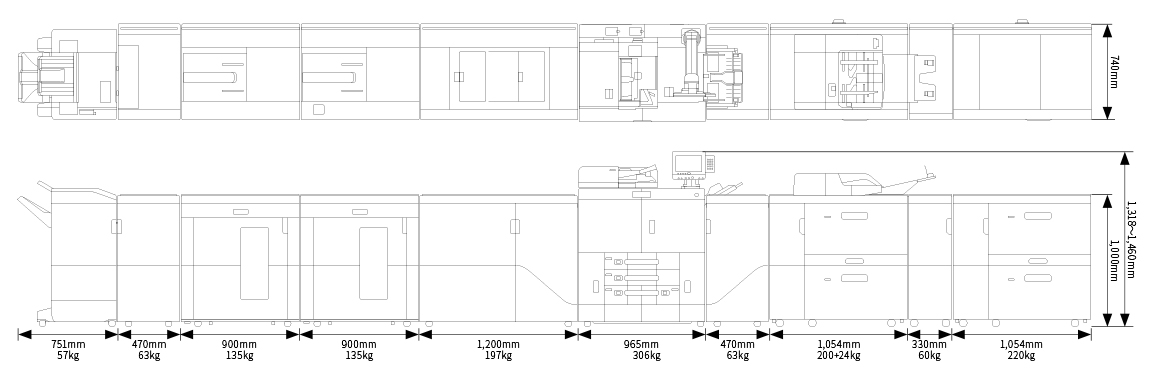

Main body + paper feed/paper output option
Paper Feed: 2,500 sheets x 2 Paper Feeder (PF-9100) *Bridge Kit for Paper Feeder (AK-9130) ; Bridge Kit for Main Unit to Paper Feeder (AK-9130) ; 550 sheets Multipurpose Tray Kit (PF -9110/AK-9140); Banner Tray for 550 sheets Multipurpose Tray Kit (Banner Guide 11)
Paper Output: Inverter and Decurler Kit (DE-9100) ; 5,000 sheets Stacker (ST-9100) ; Bridge Kit for Stacker to Finisher (AK-9120) ; 4,000 sheets Finisher (DF-9100)
Paper Output: Inverter and Decurler Kit (DE-9100) ; 5,000 sheets Stacker (ST-9100) ; Bridge Kit for Stacker to Finisher (AK-9120) ; 4,000 sheets Finisher (DF-9100)

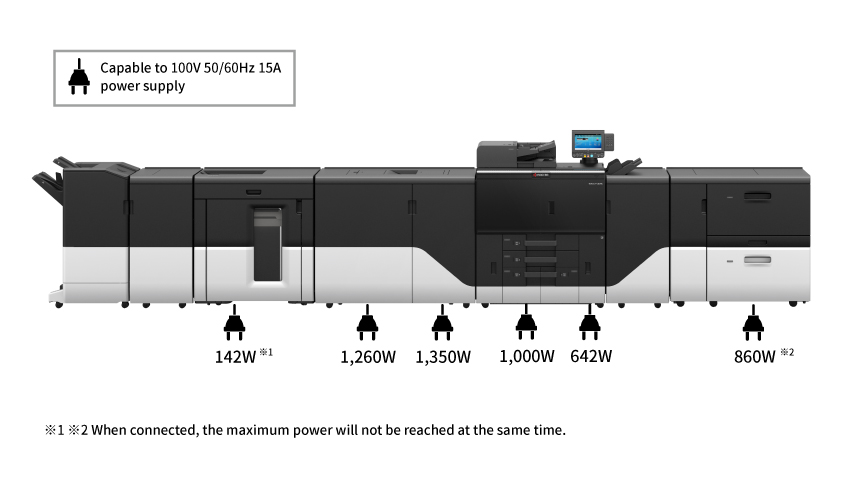

Rated power specifications and power consumption

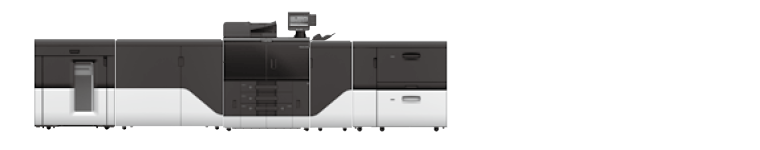

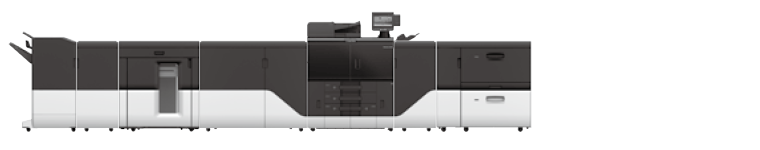

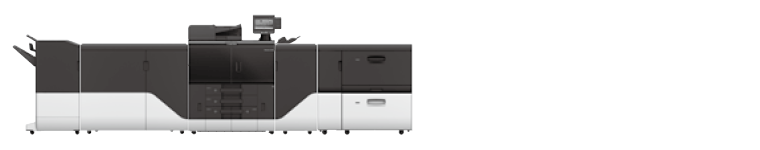

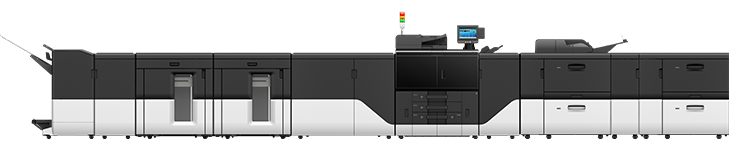

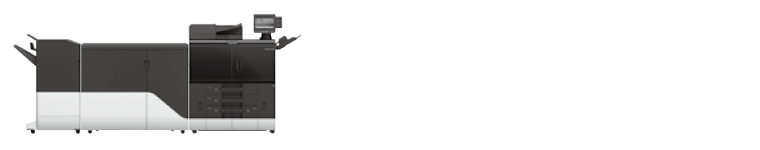

Overview of dimensions and weight by model
TASKalfa Pro 15000c
| Suggested Configuration | Total Width* (mm) |
Max. Weight** (kg) |
AC Cable | Power outlet | Maximum Power Consumption (W) |
Plate Kits | |
|---|---|---|---|---|---|---|---|
 |
Standard Model | 4,440 | 826 | 5 | 4 | 4,530 | 5 |
 |
Base Model | 2,916 | 546 | 4 | 3 | 3,670 | 4 |
 |
Printing Service Provider Model 1 | 4,589 | 909 | 6 | 4 | 4,202 | 6 |
 |
Printing Service Provider Model 2 | 5,810 | 1,021 | 6 | 4 | 4,672 | 7 |
 |
Full System Model | 8,094 | 1,436 | 8 | 4 | 5,252 | 10 |
*The total length includes interunit clearance and does not include the Fiery print server.
** Total weight does not include consumables and Fiery print server.
