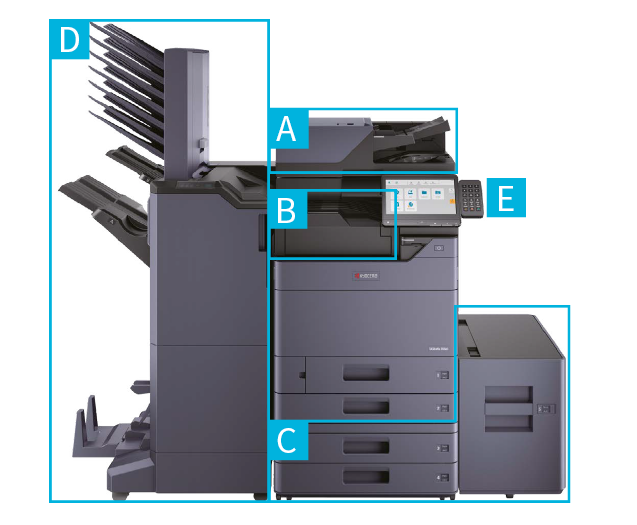

TASKalfa 7004i/6004i/5004i

ADOCUMENT PROCESSOR

*Installation of either a document processor or a platen cover is required.

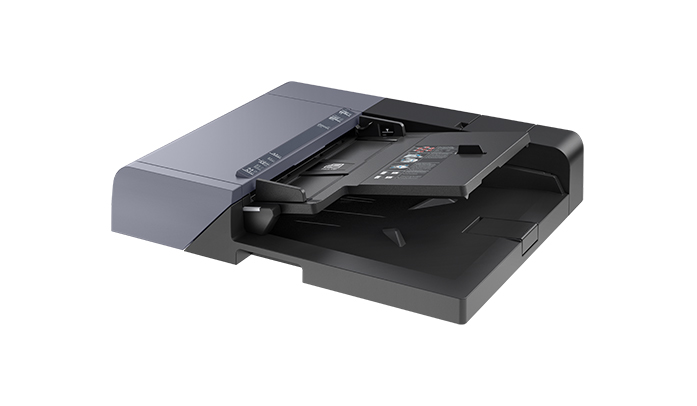

DP-7140

DP-7140

Low speed type doucment processer for max. 50 sheets.

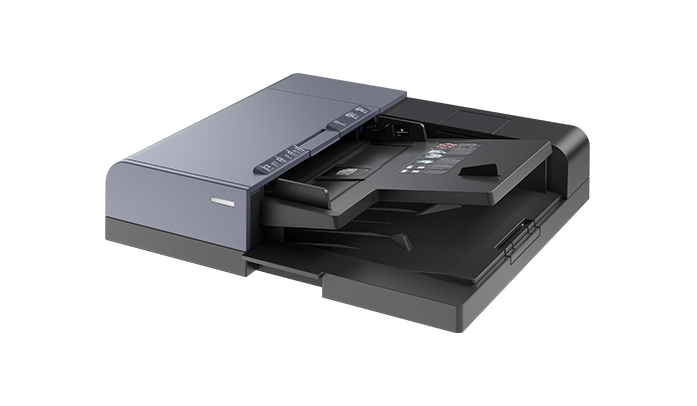

DP-7150

DP-7150

High speed type doucment processer for max. 140 sheets

DP-7160

DP-7160

Duplex scanning and copying for up to 320 sheets.

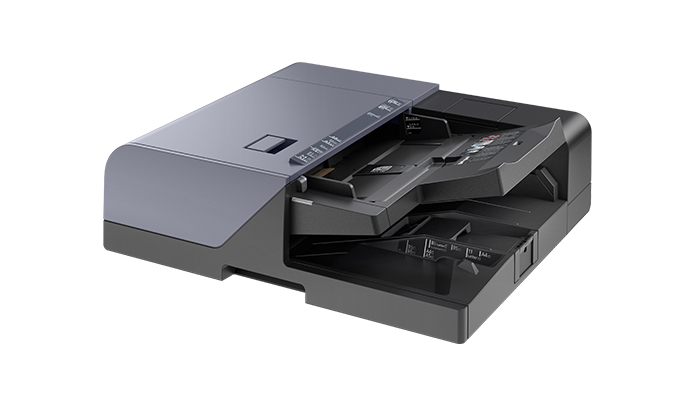

DP-7170

DP-7170

Duplex scanning and copying for up to 320 sheets with multi feed detection and staple detection.

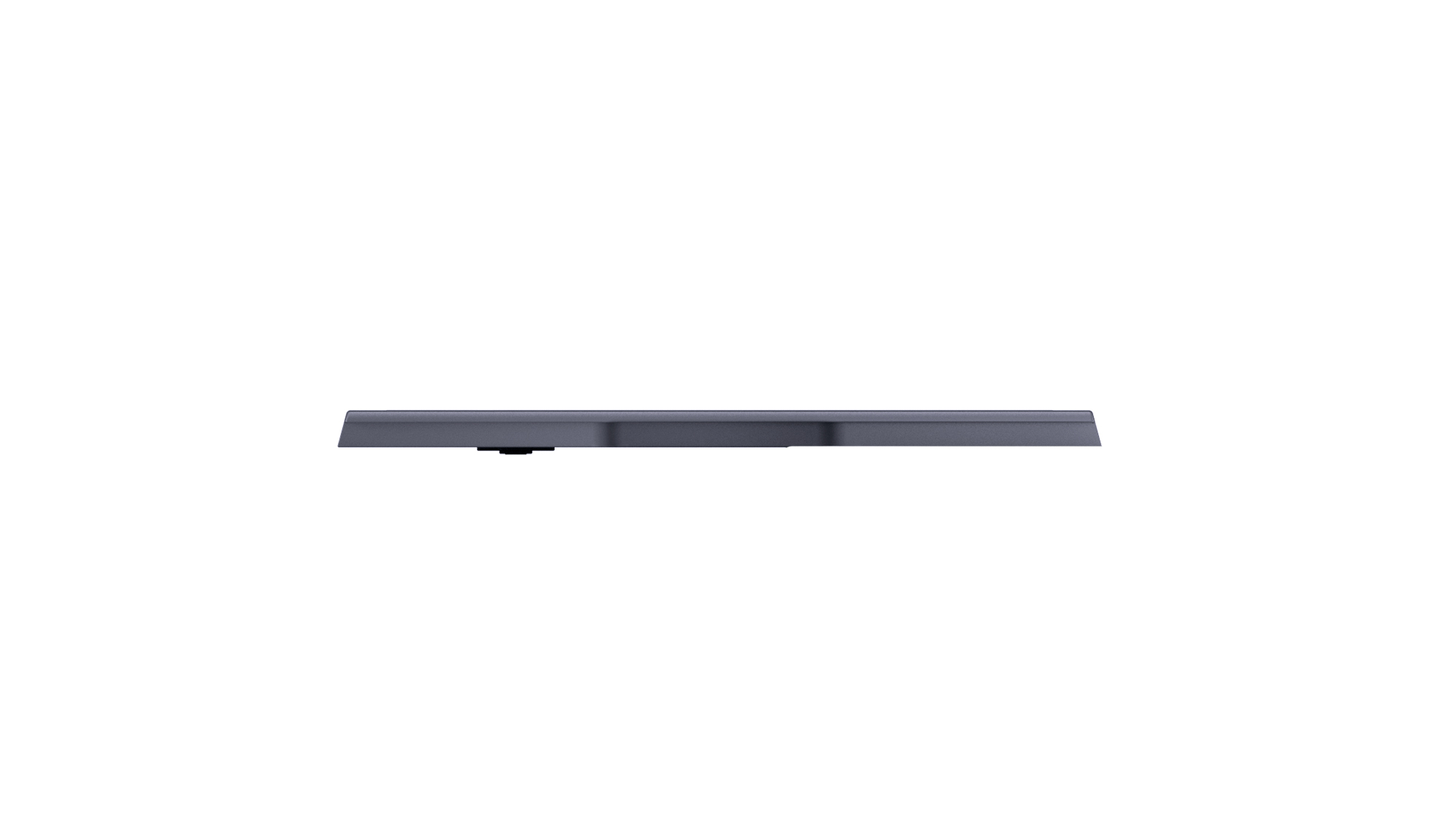

PLATEN COVER TYPE E

Platen Cover Type(E)

Platen cover to secure originals on the platen glass.

BINNER SHIFT TRAY,
INNER FINISHER,
FINISHER ATTACHMENT KIT

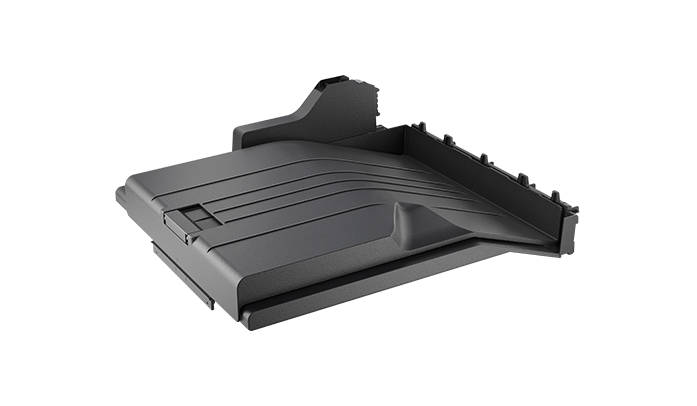

JS-7110

JS-7110

Sorts and stacks output copies as seperated sets per different jobs.

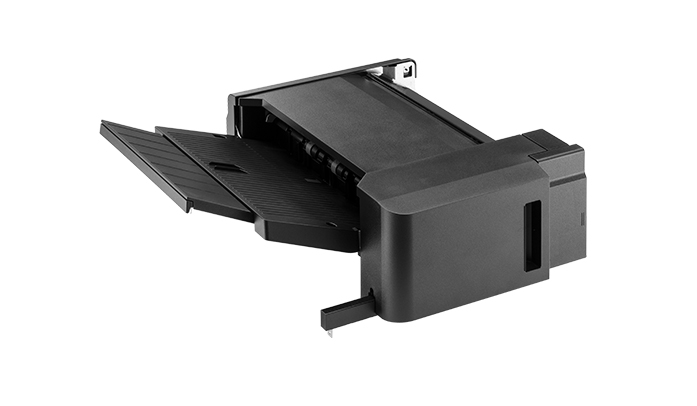

DF-7100

DF-7100

Supports output up to 500 sheets. It also offers shift-sorting and stapling, and with additional punching option.

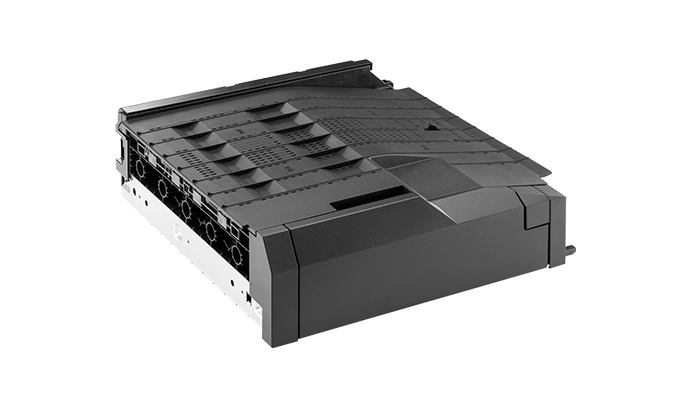

AK-7110

AK-7110

Required when configuring with a finisher.

PH-7120

Punch unit for DF-7100.

CPAPER FEEDER

*Installation of either PF-7140 or PF-7150 is required when configuring with PF-7120.

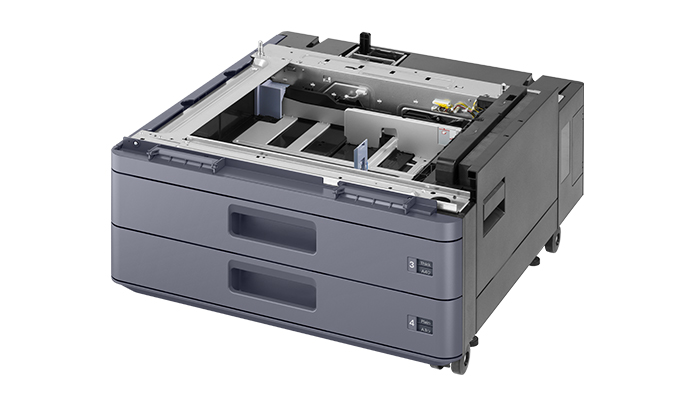

PF-7140

PF-7140

Double 600-sheet paper feeder.

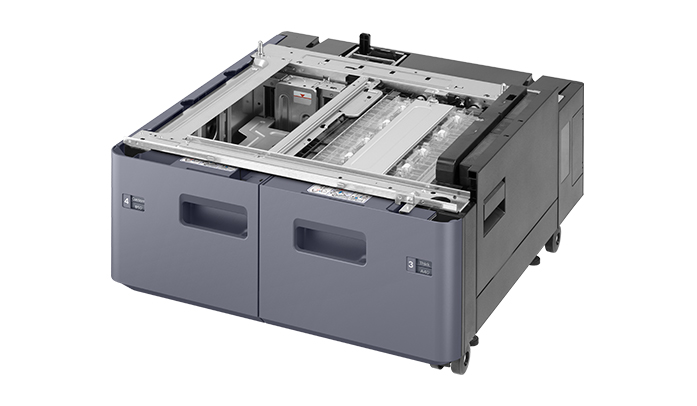

PF-7150

PF-7150

1,750 sheets (64g / m2) x 2 rows paper feeders set.

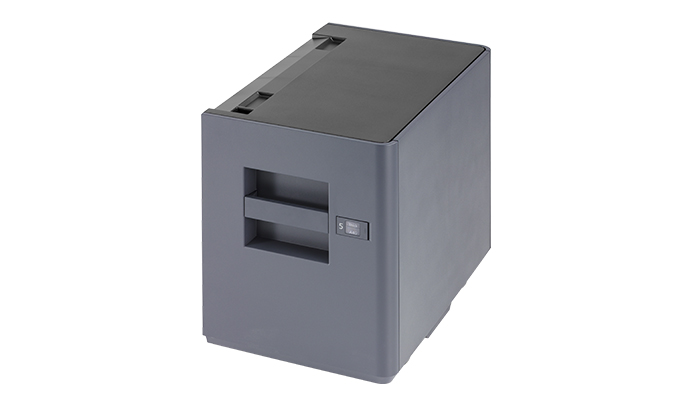

PF-7120 3,500枚サイドデッキ

PF-7120

Large-capacity paper feed deck that accommodates 3,500 sheets (64g / m2)

DFINISHER

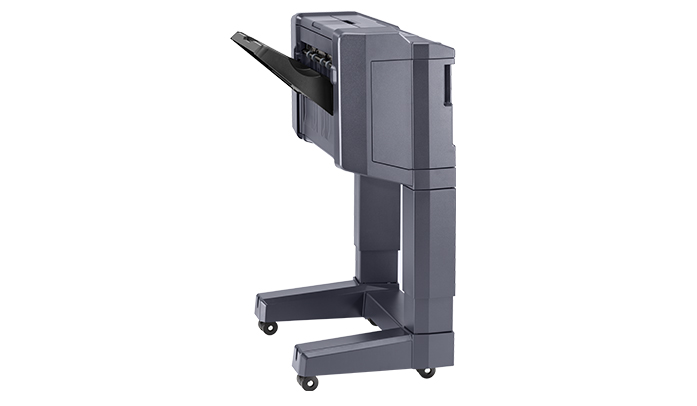

DF-7120

DF-7120

1000-sheet finisher. Supports shift-sorting and stapling, with optional punch unit.

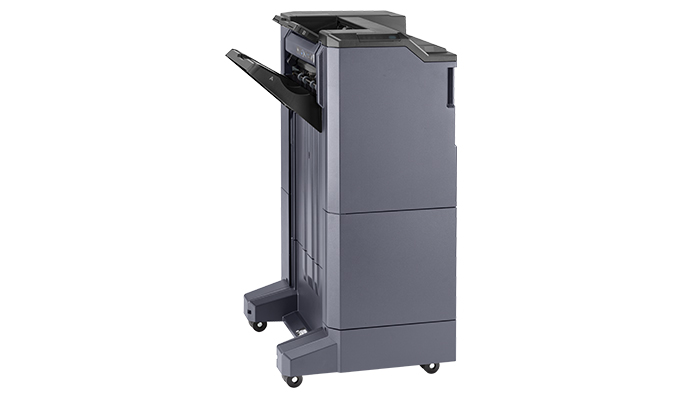

DF-7140

DF-7140

Stacking up to 4,000 sheets. Supports 2-tray sorting, shift-sorting and stapling, with optional punch unit, booklet folder, and Z-fold unit.

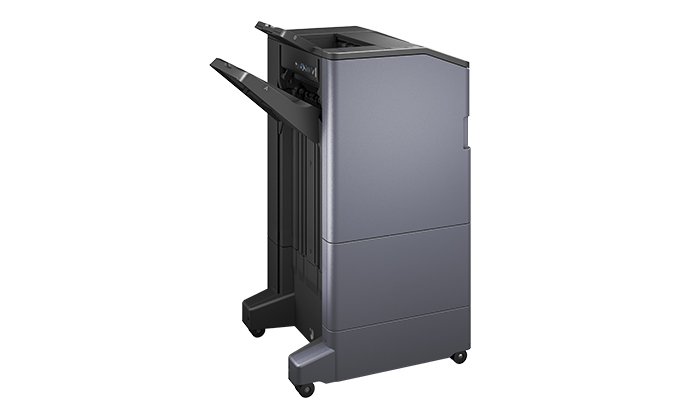

DF-7150

DF-7150

Stacking up to 4,000 sheets. Supports 2-tray sorting, shift-sorting and 3 types of 100-sheet stapling. with optional punch unit, booklet folder, and Z-fold unit.

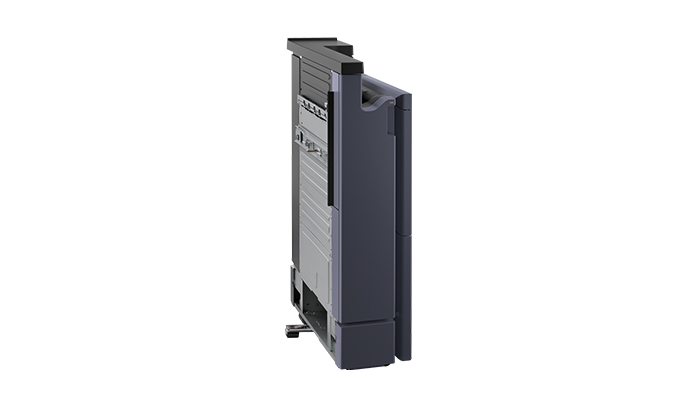

ZF-7100 Z折りユニット

ZF-7100

Device for Z-fold output.
* AK-7120 is required for configuration.
* Cannot configurate with IS-7100.
* Only for 60ppm/70ppm models.

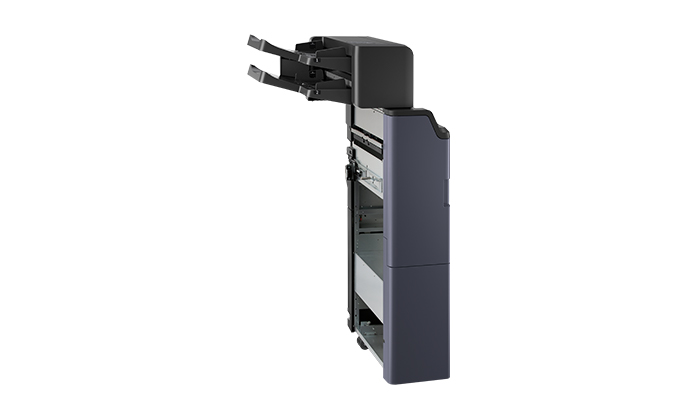

IS-7100

IS-7100

Inserter for adding different media as separator pages and covers.
* AK-7110 is required for configuration.
* Cannot configurate with ZF-7100.
* Only for 60ppm/70ppm models.

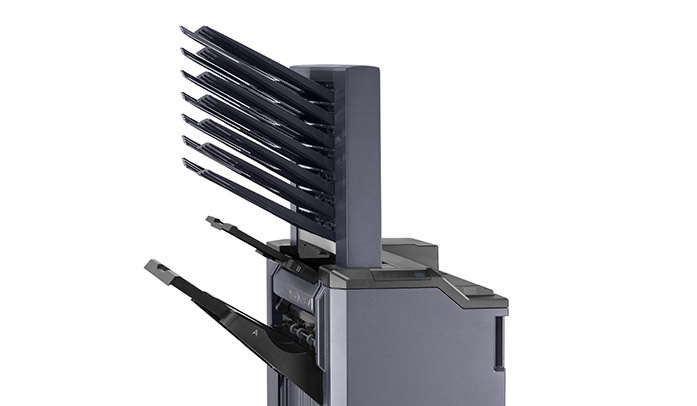

MT-730(B)

MT-730(B)

Mailbox for DF-7140.

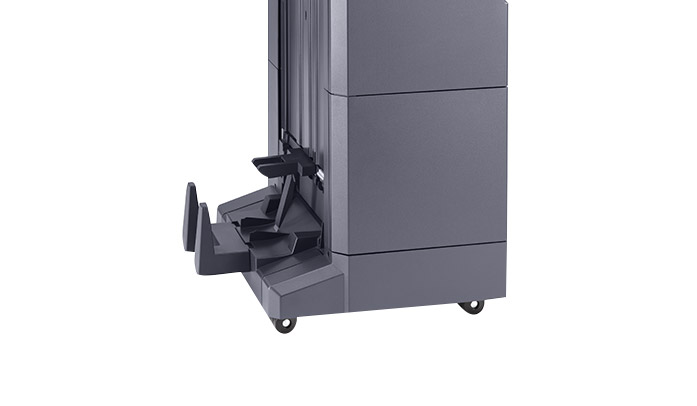

BF-730

BF-730

Booklet folder for DF-7140.

PH-7C

Punch unit for DF-7120/DF-7140.

EOTHER OPTIONS

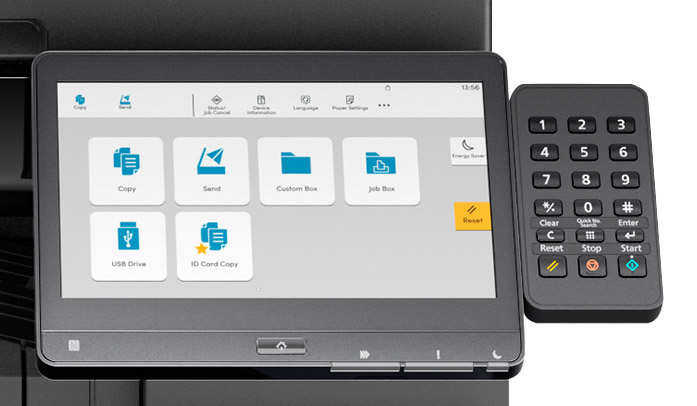

NK-7120

NK-7120

External numeric keypad with start, stop and reset controls.

Banner Guide 10

Banner Guide 10

Auxiliary part for banner paper feeding. Supports continuous paper feed up to 10 sheets.

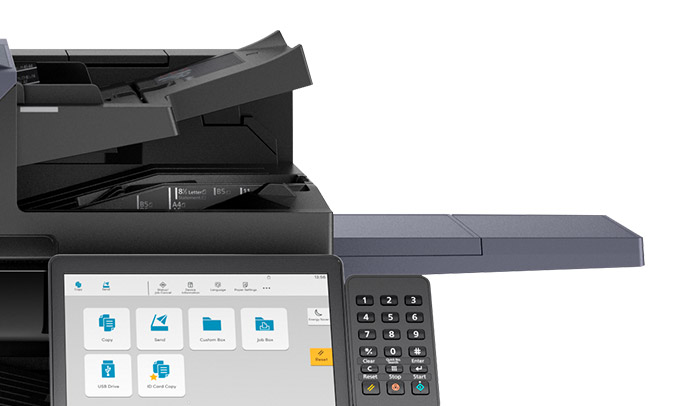

DT-730(B)

DT-730(B)

Auxiliary part for banner paper feeding. Supports continuous paper feed up to 10 sheets.

FAX System 12

For sending and receiving faxes. (Support maximum installation of 2 units)

Internet FAX Kit(A)

Supports fax function over the internet.
* The optional fax system is required separately.

Card Authentication Kit

For access control with IC card authentication.
* A separate card reader is required.

IC Card Reader

IC card reader for identity authentication.
* A separate IC card authentication kit is required.

Scan extension kit(A)

Extended option for OCR scanning. Enables output of scanned documents into text searchable PDF, or further converting into Word, Excel, and PowerPoint formats.

HD-16

Expand HDD memory capacity to 1TB, more documents , and PDF files with larger file size can be printed directly.

IB-37/IB-38

An expansion option that supports Wi-Fi (5GHz/ 2.4GHz) and enables high-speed wireless LAN communication. Complies with wireless standard of EEE802.11a/b/g/n/ac, and allows use of infrastructure mode and Wi-Fi Direct at the same time.

IB-51

Expansion option for Network Connection Port (NIC). Enable connections of two LANs at one time.
